Part Number: 1149-20-04

SAE J518 C61 / ISO 6162-1 > O-ring Face > NPTF Threaded > In-Line > Carbon Steel > Imperial (Inch) > 1149-20-04

1149-20-04

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face
Port Style
NPTF Threaded
Geometry
In-Line
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
20    1 1/4 inch    32MM
Port Size
04    1/4 inch

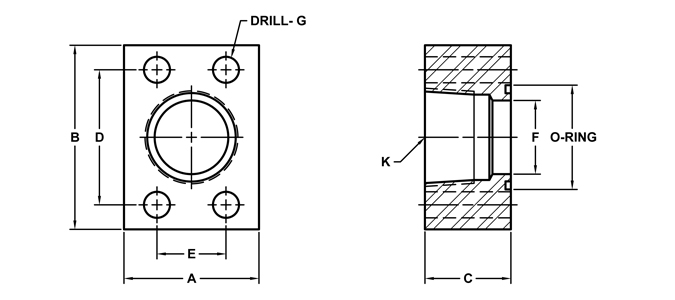

1149-20-04
A
2.50
B
3.19
C
1.50
D
2.312
E
1.188
G
0.47
F
0.44
K
1/4
Mounting Kit (sold separately)
MK 522
Screw Size
7/16-14 x 2.25 SHCS
O-Ring
222
FootNotes
This item is available and may be in stock; however, it is a non-catalog item.
