Part Number: 1149-16-04M10

SAE J518 C61 / ISO 6162-1 > O-ring Face > NPTF Threaded > In-Line > Carbon Steel > Metric (mm) > 1149-16-04M10

1149-16-04M10

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face
Port Style
NPTF Threaded
Geometry
In-Line
Material
Carbon Steel
Mounting
Metric (mm)
Pad Size
16    1 inch    25MM
Port Size
04    1/4 inch

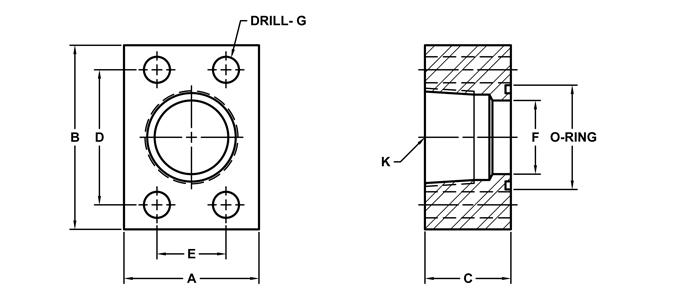

1149-16-04M10
A
2.00
B
2.82
C
1.50
D
2.062
E
1.031
G
0.41
F
0.44
K
1/4
Mounting Kit (sold separately)
MKM 521
Screw Size
M10x1.5 x 50 SHCS
O-Ring
219
FootNotes
This item is available and may be in stock; however, it is a non-catalog item.
