Part Number: 1173-24-20

SAE J518 C61 / ISO 6162-1 > O-ring Face > SAE J1926 (ORB) Threaded > In-Line > Carbon Steel > Imperial (Inch) > 1173-24-20

1173-24-20

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face
Port Style
SAE J1926 (ORB) Threaded
Geometry
In-Line
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
24    1 1/2 inch    38 mm
Port Size
20    1 1/4 inch

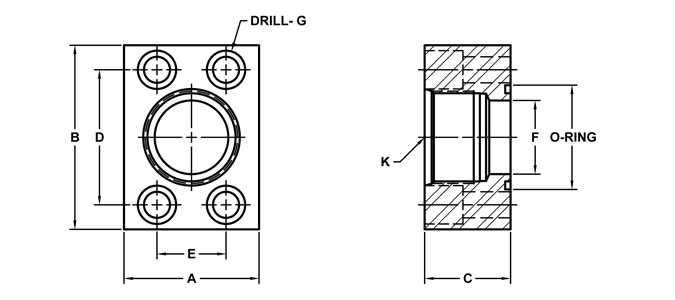

1173-24-20
A
2.75
B
3.75
C
1.75
D
2.750
E
1.406
G
0.53
F
1.50
K
1 5/8-12
Mounting Kit (sold separately)
MK 1547
Screw Size
1/2-13 x 1.75 SHCS
O-Ring
225
FootNotes
NOTE: The pressure rating of the assembly should NOT exceed the lower of the flange pad or the fitting. Check the fitting manufacturer for details.
