Part Number: 1158-08-08

SAE J518 C61 / ISO 6162-1 > Flat Face > SAE J1926 (ORB) Threaded > Branch Tee > Carbon Steel > Imperial (Inch) > 1158-08-08

Email This Link

View Catalog Page

Series

SAE J518 C61 / ISO 6162-1

Face Type

Flat Face

Port Style

SAE J1926 (ORB) Threaded

Geometry

Branch Tee

Material

Carbon Steel

Mounting

Imperial (Inch)

Pad Size

08 1/2 inch 13 mm

Port Size

08 1/2 inch

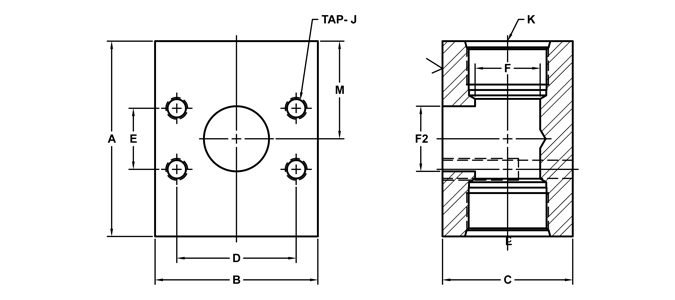

A

2.50

B

2.12

C

1.44

D

1.500

E

0.688

J

5/16-18

F

0.66

K

3/4-16

M

1.25

F2

0.50

FootNotes

NOTE: The pressure rating of the assembly should NOT exceed the lower of the flange pad or the fitting. Check the fitting manufacturer for details.
