Part Number: 1237-08-12

SAE J518 C61 / ISO 6162-1 > O-ring Face > Socket Weld for Tube > Carbon Steel > 1237-08-12

1237-08-12

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
O-ring Face
Port Style
Socket Weld for Tube
Material
Carbon Steel
Flange Size
08    1/2 inch    13 mm
Port Size
12    3/4 inch

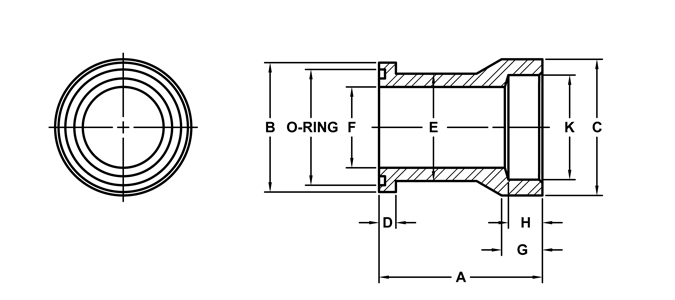

1237-08-12
A
2.12
B
1.19
C
1.31
D
0.265
E
0.920
G
0.50
F
0.50
K
0.760
H
0.50
O-Ring
210
