FIND CATALOG PAGE

Part Number: 1304-12-12

SAE J518 C61 / ISO 6162-1 > Flat Face/Flat Face > None > Carbon Steel > Imperial (Inch) > 1304-12-12

1304-12-12

  Email This Link

View Catalog Page
Series
SAE J518 C61 / ISO 6162-1
Face Type
Flat Face/Flat Face
Gauge Port Style
None
Material
Carbon Steel
Mounting
Imperial (Inch)
Pad Size
12    3/4 inch    19 mm
Gauge Port Size
-    None inch

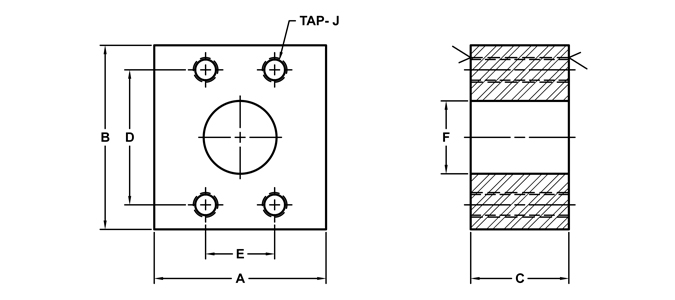

1304-12-12
A
2.00
B
2.62
C
1.75
D
1.875
E
0.875
J
3/8-16
F
0.75
O-Ring
214
